Easy Integration and Streamlined Solutions with Advanced IoT Modules
Tura-Signalix IoT modules are advanced remote reading and control devices designed for industrial use, integrating signal conversion and transmission functions into a single unit. Pre-configured modules can be quickly deployed thanks to the 'Plug and Play' feature, and their functions can be easily changed or adapted according to user needs.

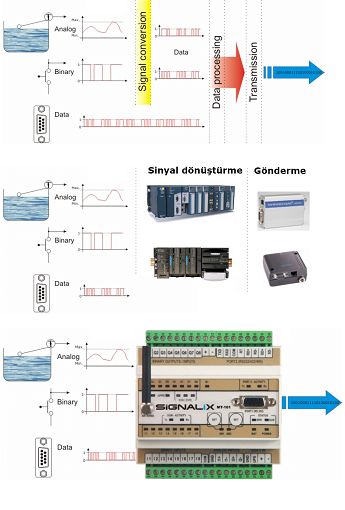

Signalix modules eliminate the complexities encountered with different equipment by integrating signal capture units, I/O transition units, PLC units and GPRS data transmission units into a single module. This allows for all operations to be provided in one solution without the need for additional software development or programming.
The Signalix platform is developed for industrial automation applications and is designed to work seamlessly with widely used sensors, equipment and standards. It can be effortlessly integrated with your existing hardware and software systems, both on the hardware and software sides.
- GSM / GPRS Communication
- 16 Digital Inputs (Can be configured as counters)
- 12 Digital Outputs (Can be configured as Digital Inputs)
- 4 Analog Inputs (4-20 mA)
- 2 Analog Inputs (0-10 V)
- Programmable 4 Alarm Levels for Each Analog Input
- Alarm and Control Functions (SMS Sending, Data Transmission, Output Controls)
- PLC - Programmable Logic Controller
- External Devices Interface via RS-232/RS-422/RS-485 Serial Port
- RTC - Real-Time Clock (2 user-configurable)
- Data Logger ve Memory
- Standard Communication Protocols (MODBUS RTU, MODBUS TCP, M_BUS, NMEA 0183)
- Wired or Remote (GPRS) Configuration
- Adjustable Access Security (IP & GSM No)
- DIN Rail Mounting
- Detachable Terminal Blocks
- Status Indicators (Status, GSM Connection Status, GSM Signal Level, GPRS Connection Status, Serial Port Connection Status, I/O Status)
- OLED Graphic Display
- GSM / GPRS Communication
- 16 Digital Inputs (Can be configured as counters)
- 12 Digital Outputs (Can be configured as Digital Inputs)
- 4 Analog Inputs (4-20 mA)
- 2 Analog Inputs (0-10 V)
- Programmable 4 Alarm Levels for Each Analog Input
- Alarm and Control Functions (SMS Sending, Data Transmission, Output Controls)
- PLC - Programmable Logic Controller
- External Devices Interface via RS-232/RS-422/RS-485 Serial Port
- RTC - Real-Time Clock (2 user-configurable)
- Data Logger ve Memory
- Standard Communication Protocols (MODBUS RTU, MODBUS TCP, M_BUS, NMEA 0183)
- Wired or Remote (GPRS) Configuration
- Adjustable Access Security (IP & GSM No)
- DIN Rail Mounting
- Detachable Terminal Blocks
- Status Indicators (Status, GSM Connection Status, GSM Signal Level, GPRS Connection Status, Serial Port Connection Status, I/O Status)
- GSM / GPRS Communication
- 4 Digital Input / Output (Can be configured separately)
- 2 Digital / Counter Input (Can be configured separately)
- 2 Digital / 4-20 mA Analog (Can be configured separately)
- 1-Wire Input
- Power Supply for a Sensor to Operate (5-24 V)
- Alternative Li-ion Battery (800 mAh/2600 mAh)
- Programmable 4 Alarm Levels for Each Analog Input
- Alarm and Control Functions (SMS Sending, Data Transmission, CLIP)
- RTC - Real-Time Clock (2 user-configurable)
- Wired or Remote (GPRS) Configuration
- Adjustable Access Security (IP & GSM No & Custom Password)
- Aluminum Body, DIN Rail Mounting
- Detachable Terminal Blocks
- 12/24 V DC, 24 V AC Power Supply
- Status Indicators (Status, GSM/GPRS Connection, Serial Communication)
- DC Power Output and Energy Saving Function with Solar Panel (Eco-Friendly Product Line)
- 28000 Data Logger Capacity
- Micro USB Configuration Port
- MIM Card Alternative
- Built-in Temperature Measurement Function
- Optional Integrated Pressure and Humidity Measurement Functions
- Custom Elevator Module
- Communication via GSM / GPRS
- Compatibility with GSM 850 / 900 / 1800 / 1900
- Autonomous Entry into GSM / GPRS Network
- 8 Opto-Isolated Digital / Counter Inputs
- 2 Opto-Isolated Digital Outputs
- Audio Output for Standard Intercom
- Option to Replay Recorded Voice Messages
- Automatic Alarm Sending via Alarm Input (SMS/GPRS)
- Automatic Receipt of Incoming Voice Messages and Callback Feature
- Automatic Report of Voice Calls Made
- Optional Communication Port for Monitoring and Controlling Peripheral Equipment (RS-232 and RS-485)
- Detachable Terminal Blocks
- Embedded 2G / 3G / 4G modem
- Integrated GPS receiver supporting GPS, QZSS, Glonass, Galileo, BeiDou
- 6 Measurement Channels
- AC and DC Voltage Measurement
- Ability to measure in microvolt range
- 2 Dijital Input
- 2 Relay Outputs
- Remote communication via network and SMS commands
- Configuration, measurement triggering, and measurement reading in application via BLE Interface
- Local configuration of the module via USB-C Port
- RS-485 Serial Port for External Devices
- RTC - Real-Time Clock, time synchronization via GNSS system signal
- Modbus RTU Slave Operating Mode
- Reed Switch for Measurement Triggering
- External Power Source Backup
- 5 Diagnostic LEDs
- Built-in GPS Antenna (removable when an external SMA antenna is connected)
- 2 Connector Sets (M23 and Removable Terminal Blocks)
- NIS2 Compliance
- 0.1-second resolution and 180,000 recording capacity Data Logger
- Remote configuration, diagnostics, and software updates (OTA)
All Signalix IoT modules are supplied with their software.

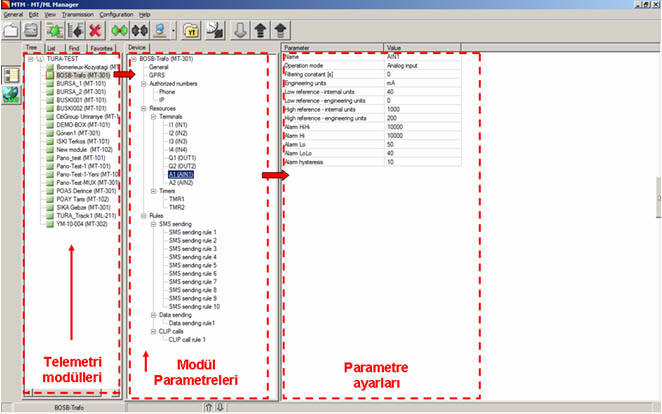

MT Manager
The GSM/GPRS settings of the modules, user and access rights, configuration of input/output sources, SMS sending rules and all other configurations are managed under a single platform.
MT Manager
The GSM/GPRS settings of the modules, user and access rights, configuration of input/output sources, SMS sending rules and all other configurations are managed under a single platform.

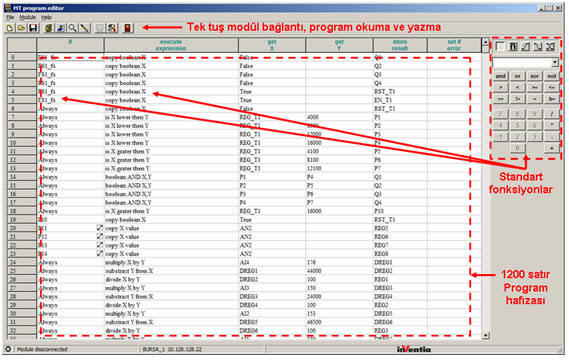

MT Restore
The program, configuration, and system parameters of modules with PLC functionality are securely stored and can be reloaded to the module when needed.
MT Restore
The program, configuration, and system parameters of modules with PLC functionality are securely stored and can be reloaded to the module when needed.

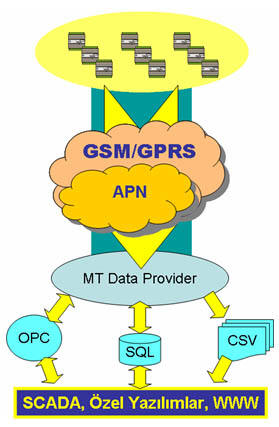

MT Dataprovider
Data can be written to the modules, queried and the retrieved data can be provided to OPC-compliant SCADA software and/or ODBC-compliant database software.
MT Dataprovider
Data can be written to the modules, queried and the retrieved data can be provided to OPC-compliant SCADA software and/or ODBC-compliant database software.
